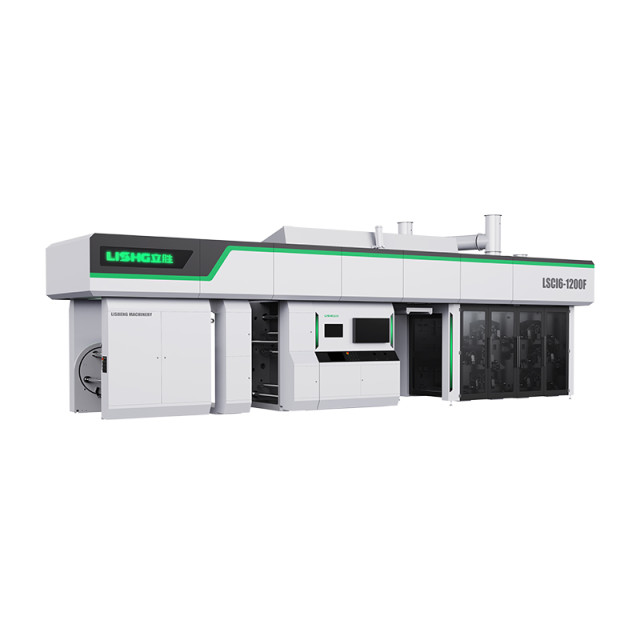

The gearless sleeve flexo printing machine adopts an advanced full servo system. Compared with traditional gear transmission printing machines, it is faster, realizes fully automatic color registration, and has lower maintenance costs.
Machine Features:
1. Non stop unwind rewind
2. The gearless sleeve full servo printing system
3. Fully automatic color registration
4. Fully automatic frequency conversion control drying system
Printing sample

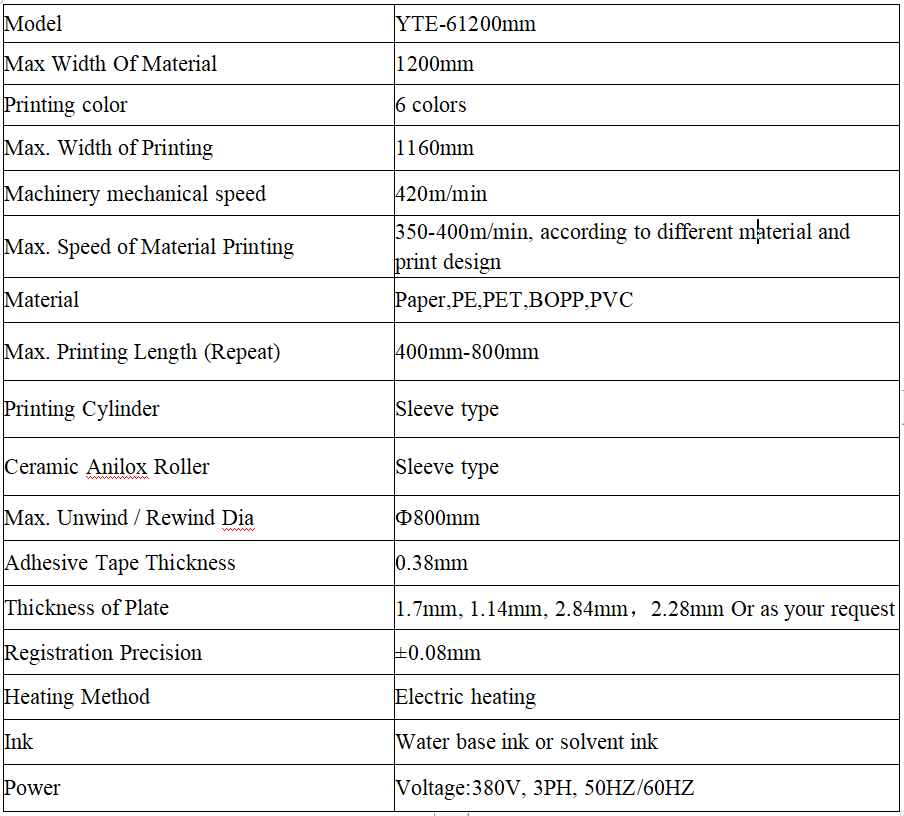

Max width of material: 1200mm
Printing color: 6colors
Max printing width: 1160mm
Machinery mechanical speed: 420m/min
Max. Speed of Material Printing: 350-400m/min, according to different material and print design
Material: Paper, PE, PET, BOPP, PVC
Max. Printing Length (Repeat): 400mm-800mm
Machine power: 380V, 3PH, 50HZ/60HZ
Frame and web running:
1.The frame is made of alloy cast iron with high strength and lower stress. It is casted by resin sand process and treated by vibration aging.
2.Integral type guide roller structure.
3.Assembled modularization in design.
4.Frame thickness 100mm
5.Guide roller Φ100mm (Surface anodic oxidation treatment)
CI TYPE Paper Flexographic Printing Press
Frame and web running:
1.The frame is made of alloy cast iron with high strength and lower stress. It is
casted by resin sand process and treated by vibration aging.
2.Integral type guide roller structure.
3.Assembled modularization in design.
4.Frame thickness 100mm
5.Guide roller Φ100mm (Surface anodic oxidation treatment)

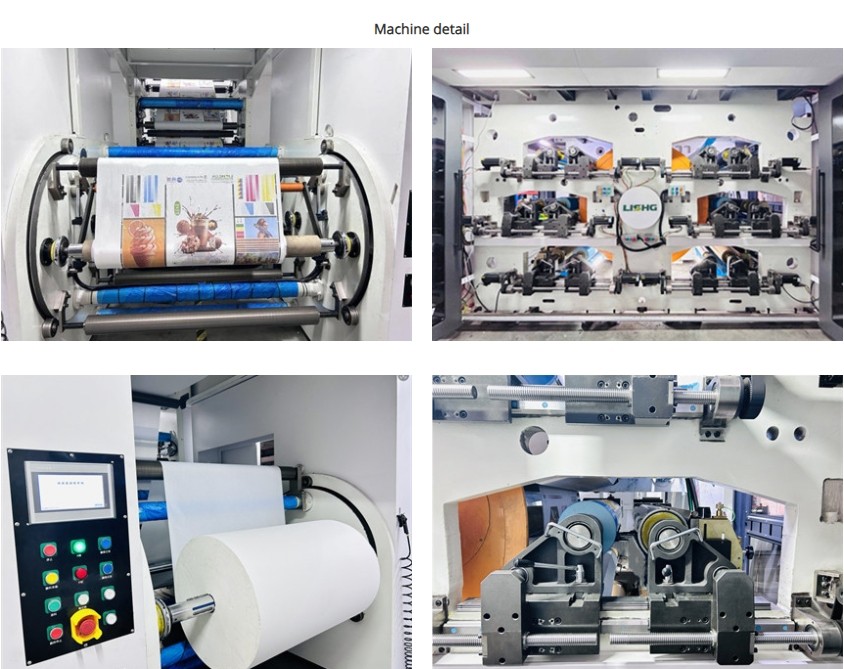

Here is some detail picture below.Hope can make you know more about our machine
